DevOps Pipeline view

The DevOps Pipeline view draws your branches, where each one merges and the Salesforce org each one deploys to, with the open Pull Requests and the status of the last deployments. Below the diagram, cards start every step of the contributor workflow.

For the concepts behind it (major branches, merges, delta deployments), read Salesforce CI/CD first.

Open it

• Click DevOps Pipeline in the CI/CD (simple) menu of the side bar.
• Click the DevOps Pipeline card of the Welcome panel.

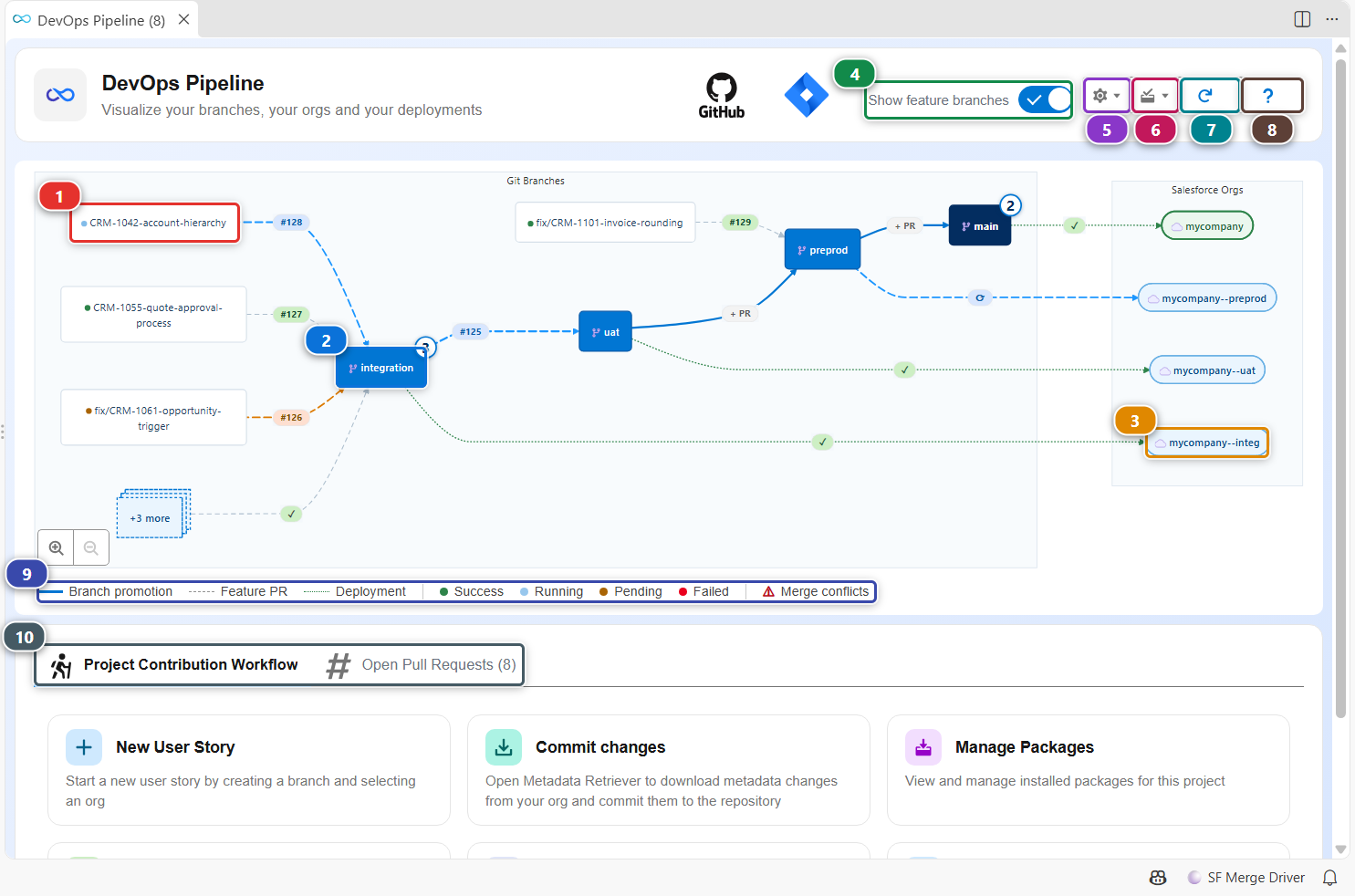

Read the diagram

• (1) is a feature branch, with the number of its Pull Request. When too many target the same branch, they are grouped in a +N more box.
• (2) is a major branch. The badge on its corner counts the Pull Requests open against it. Click it to see its Pull Requests, tickets and deployment actions.
• (3) is the org a major branch deploys to. The dotted line carries the result of the last deployment: a check mark when it passed.
• (4) shows or hides the feature branches. They are shown by default.
• (5) opens the pipeline settings menu, (6) the package files menu, (7) the Pull Requests explorer, and (8) reloads branches, Pull Requests and deployments. The last button of the row opens this guide.
• (9) is the legend of the lines and statuses.
• (10) switches between the contribution cards and the list of open Pull Requests.

Start and publish a User Story

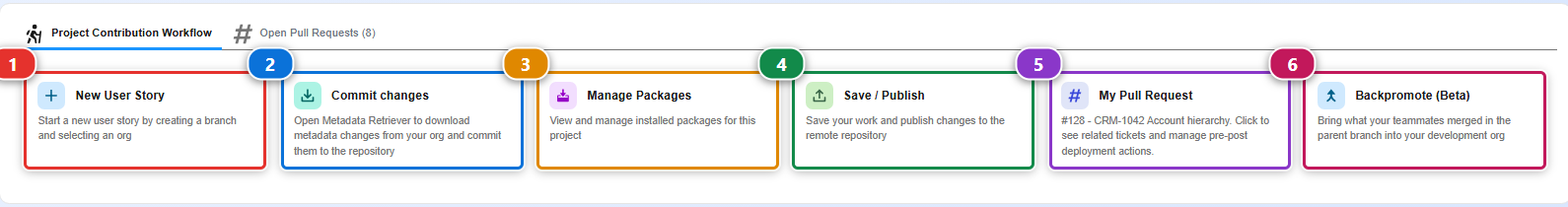

The cards follow the order of the work:

1. (1) creates the branch of a new User Story and selects the org to work in. See Start a User Story.
2. (2) opens the Metadata Retriever to pull what you changed in your org, so you can commit it.
3. (3) installs or updates managed packages. See Install packages.
4. (4) cleans your changes, pushes them and opens the Pull Request. See Publish a User Story.
5. (5) shows the Pull Request of your current branch, with its tickets and deployment actions.
6. (6) brings into your development org what your teammates merged in the parent branch. See Backpromote.

Add a deployment action to your Pull Request

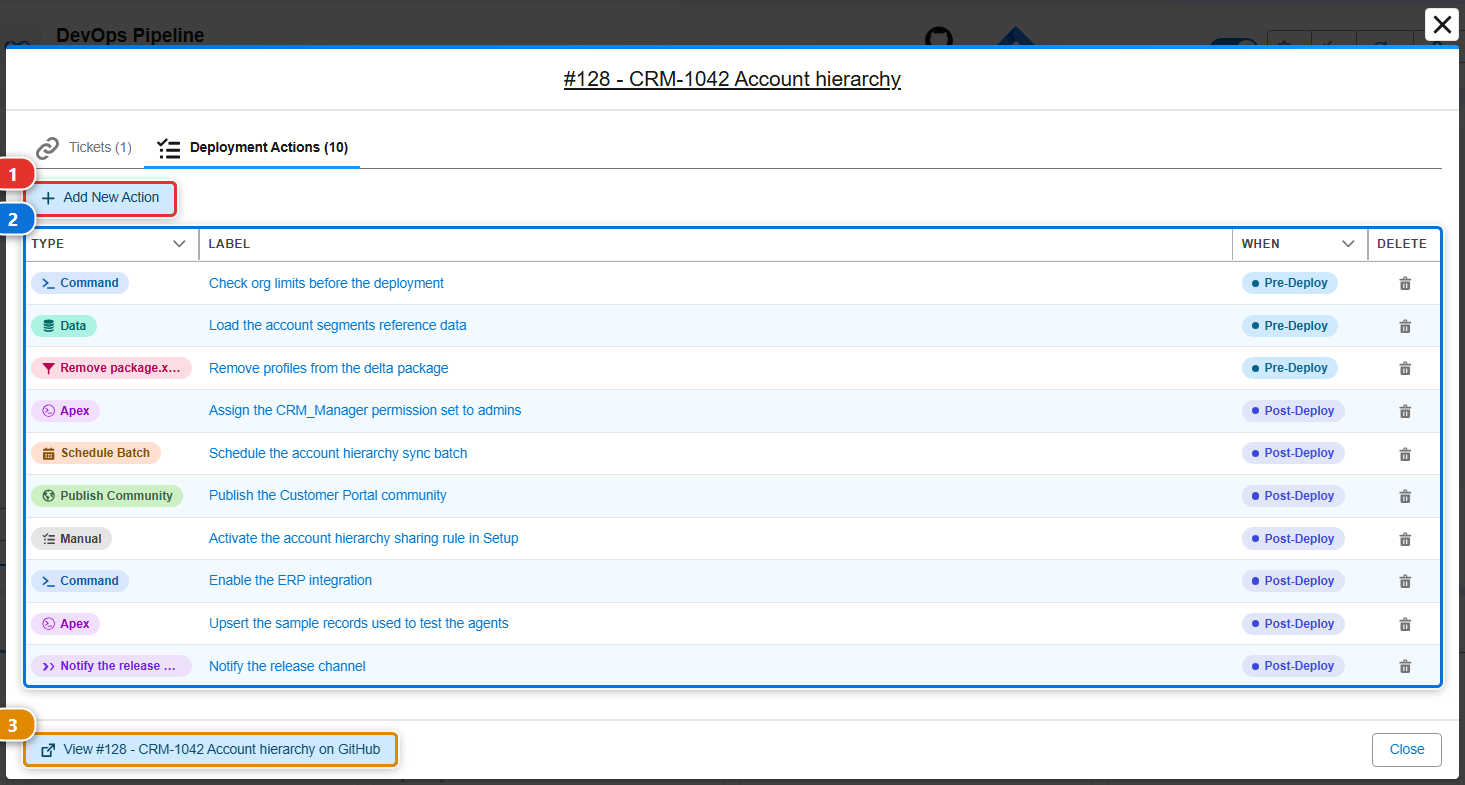

Some changes need a step that metadata alone cannot do: load reference data, run an Apex script, assign a permission set. Open your Pull Request with the My Pull Request card, then its Deployment Actions tab.

1. Click (1) to add an action, pick its type and when it runs (before or after the deployment).
2. The list (2) shows the actions of the Pull Request, numbered in the order they run. Click a label to see or edit it, Run in my org to try the action in your developer org before the merge (Rerun after a failed try), or open the menu at the end of its row to delete it. See Try your actions in your own org.
3. The Open on button of the header opens the Pull Request on your git provider.

The actions run automatically when the Pull Request is deployed. See Deployment actions for every action type.

Review what is about to be deployed to a major branch

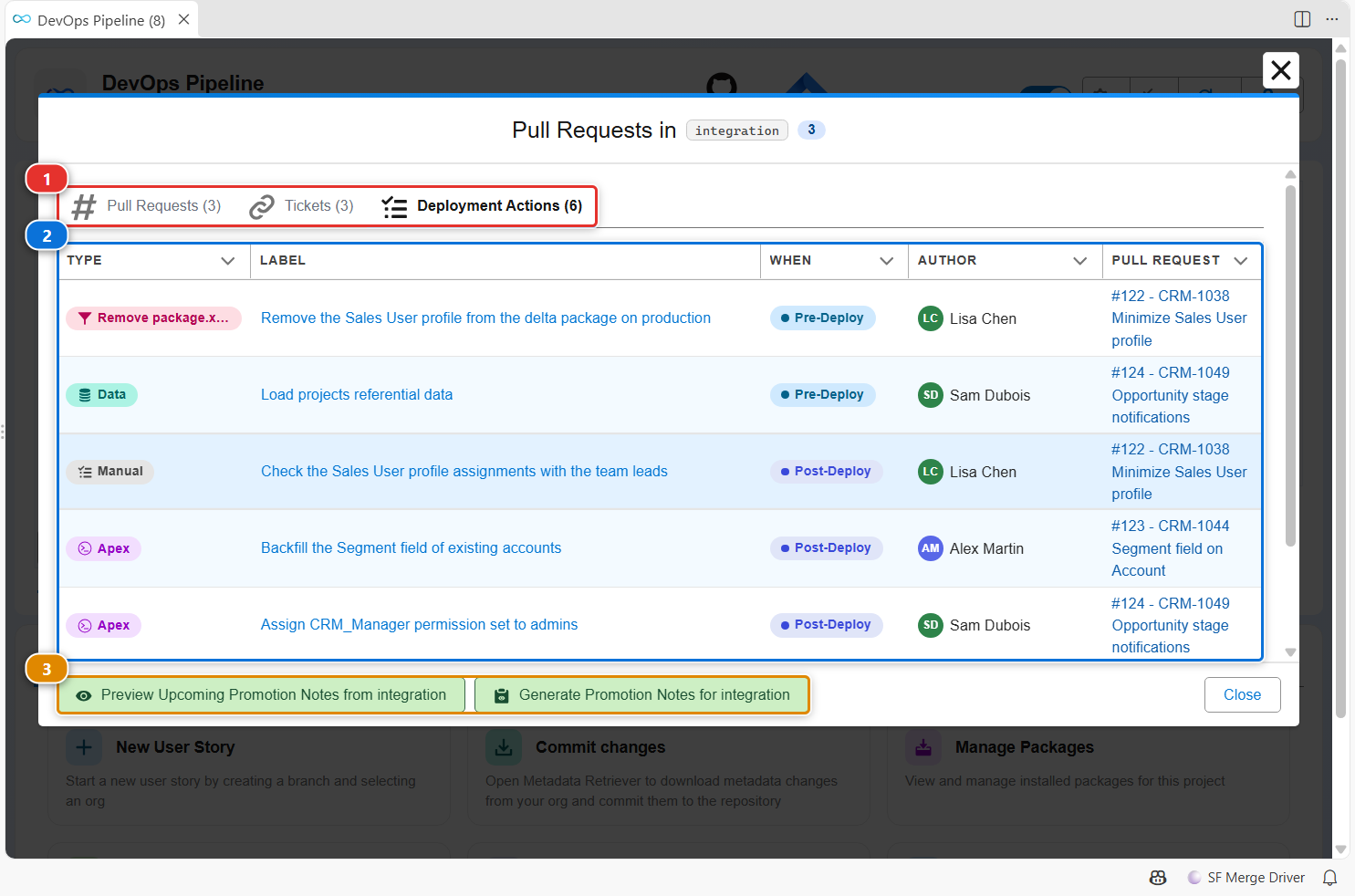

Click a major branch in the diagram. The window lists the Pull Requests merged into it:

• (1) switches between its Pull Requests, the tickets they mention and their deployment actions.
• (2) lists the deployment actions of those Pull Requests, grouped by Pull Request with its author, numbered in the order they run. Once the deployment ran, each action shows its status in the org of the branch, and a failed one can be retried from there: see Recover a failed action.
• (3) previews or generates the promotion notes of the next merge to the upper branch.

The Pull Requests tab is a list you can filter: type a number, a title, an author, a branch or a ticket. A story a promotion brought into the branch says Carried by and the number of that promotion, which opens it; typing that number lists everything it brought. Merges and promotions adds the Pull Requests that only move other ones.

Click the number or the title of a Pull Request to open it without leaving the window: a line above the title brings you back, with the stories you had ticked still ticked.

Find and open any Pull Request

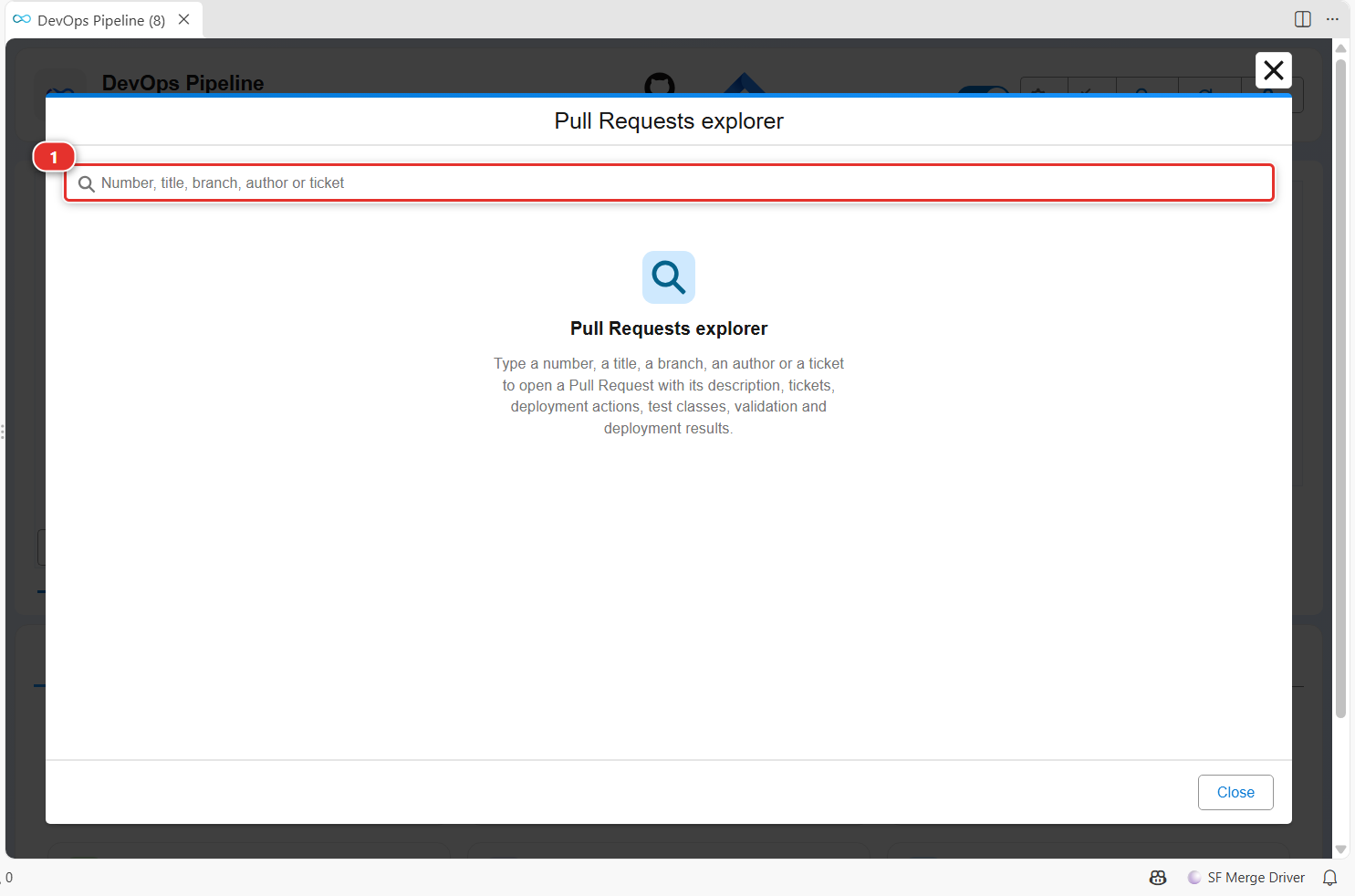

The search button of the toolbar opens the Pull Requests explorer. Type a number, a title, a branch, an author or a ticket in (1): the Pull Requests the pipeline already shows are listed at once, then the ones found on your git provider, open or merged.

A Pull Request opens the same way from everywhere: the explorer, the My Pull Request card, the Open Pull Requests tab, a feature branch or a Pull Request number of the diagram, and a Pull Request named in a ticket, a deployment action or another panel. Ctrl+click (Cmd+click on macOS) on a Pull Request number of the diagram still opens it on your git provider.

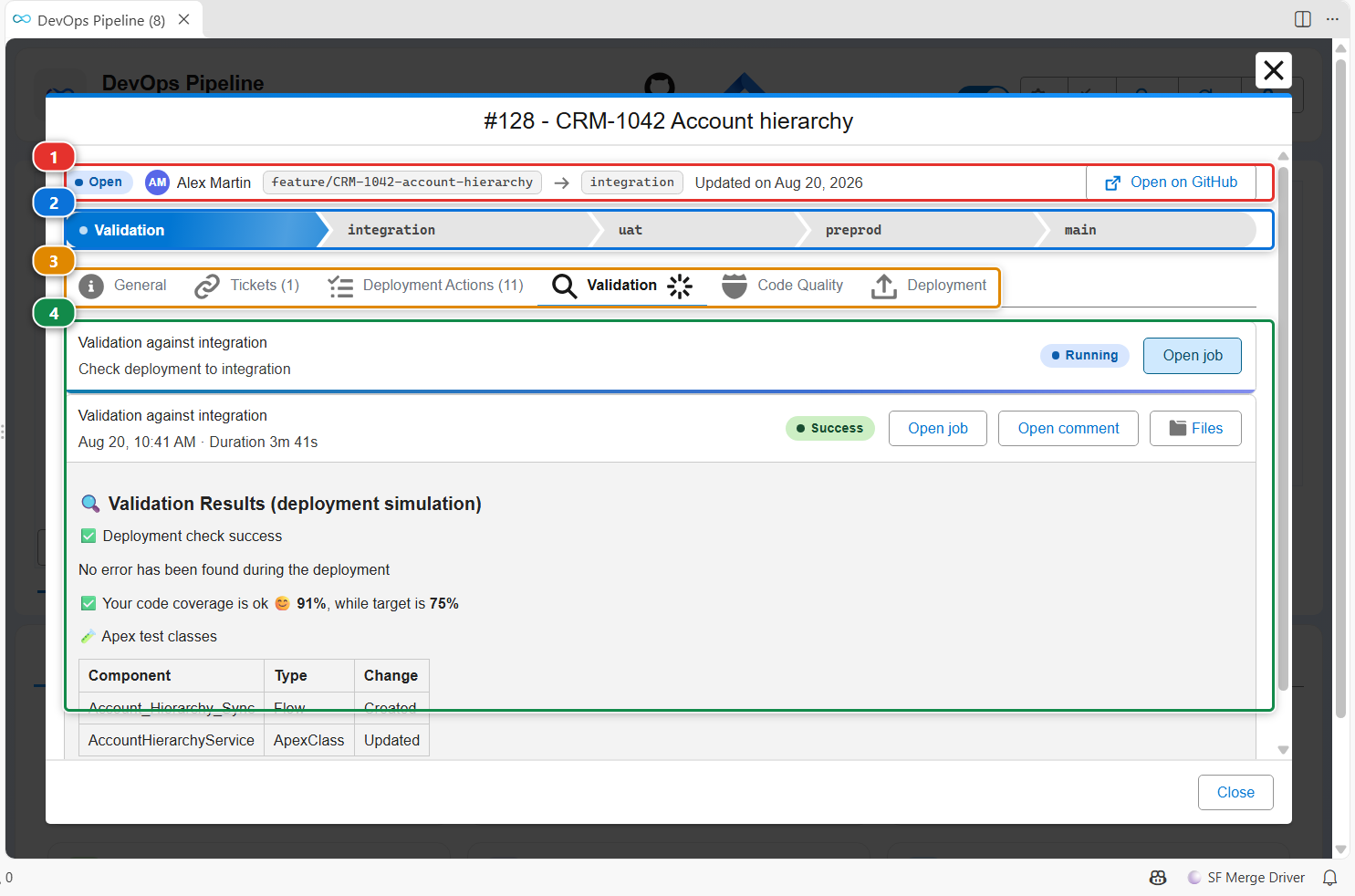

The window of a Pull Request shows:

• (1) its state, its author, its branches, and the button that opens it on your git provider.
• (2) its way through the pipeline: the validation, then each major branch up to production, with the promotion that carried it when there is one, or the open one it is waiting for. A step moves while its job is running. A branch reads Not in the pipeline windows when the Pull Request was merged too long ago for the pipeline to tell. A promotion, or a merge between two major branches, stops at the branch it is merged into: the stories it carries go further, it does not.
• (3) its tabs, and (4) the content of the one selected, here the validation comment.
• General: the description of the Pull Request.
• Pull Requests, on a promotion or on a merge between two major branches: the Pull Requests it carries, each one opening in the same window.
• Tickets, with their status and who they are assigned to.
• Deployment Actions and Tests, as in your own Pull Request.
• Validation, Code Quality (MegaLinter) and Deployment: the comment each of them posted on this Pull Request, as you would read it on your git provider, with its outcome and the links to the job and to the comment. A job that is still running or queued is listed first, with the time it has been going on and the link to the job, and its tab carries a spinner. A finished job says how long it took. Files lists the report files the job published as artifacts, downloaded in hardis-report/job-artifacts of your project: click one to open it. Above 10 files, they are browsed by folder. Bitbucket has no Files button, use the job page there. They show the comments of this Pull Request only, not those of a promotion that carried it further.

Open on GitHub (or your git provider) in the header is the way out to the Pull Request page. When the Pull Request was opened from a list or from another Pull Request, Previous and Close bring that window back; Close closes the window otherwise.

The deployment actions and the test classes are read from the files of the branch you have checked out, and written there. When you change them on a Pull Request that is not the one of your branch, a warning names that branch: what you change travels with your own Pull Request. Run in my org is only offered on your own Pull Request.

Configure the pipeline

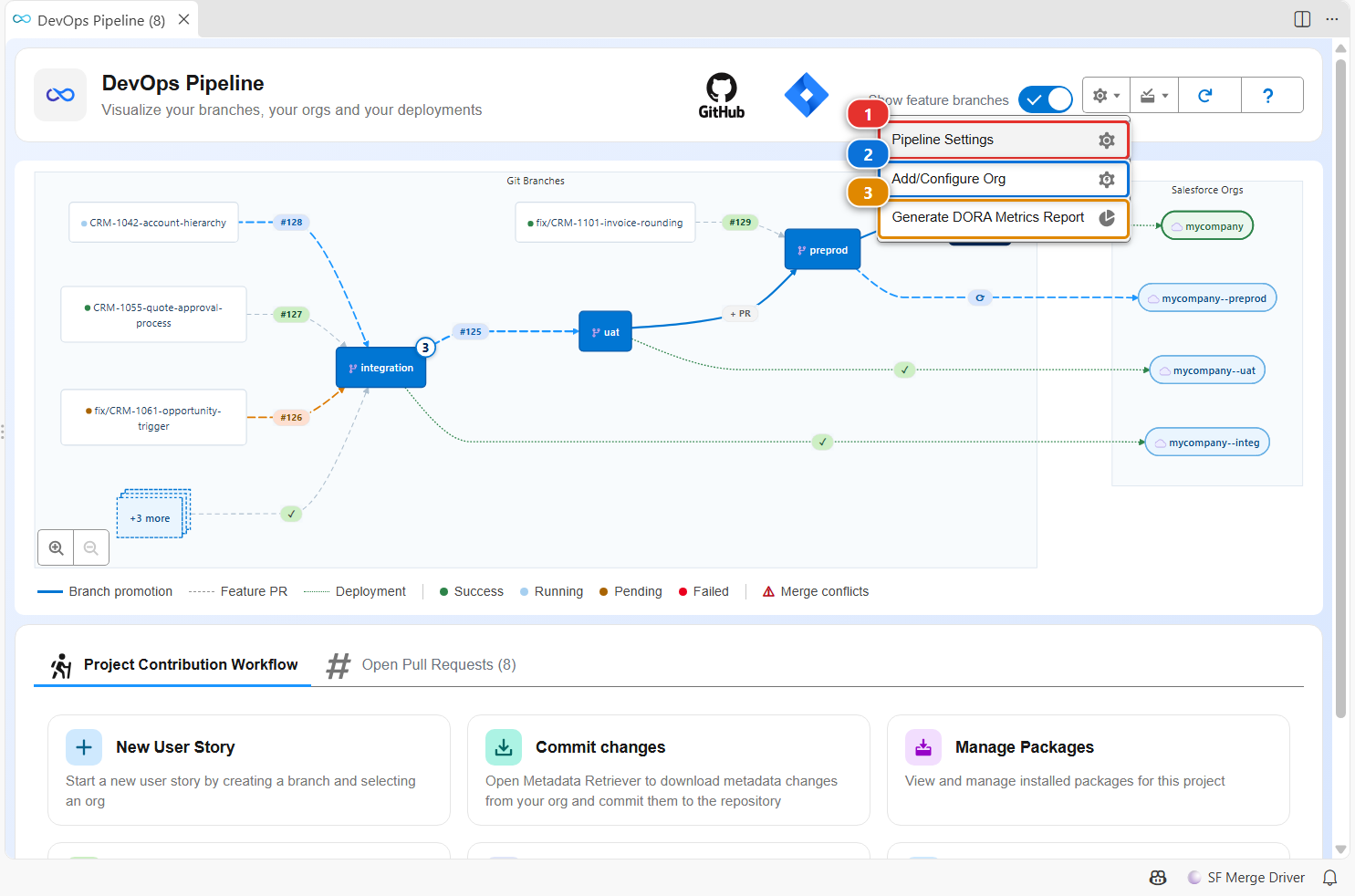

The gear menu gathers the settings of the project:

• (1) Configure Pipeline Settings opens the editor of .sfdx-hardis.yml: branches, deployment options, tickets, notifications. Pipeline Settings lists every setting, tab by tab.
• (2) Add or Reconnect a Major Org connects a major branch to its org, so the CI/CD pipeline can deploy there, or renews the authentication of an org already connected.
• (3) Configure Org Initialization opens the steps that set up every new scratch org or sandbox, and the scratch org definition.
• (4) Generate DORA Metrics opens the DORA metrics of the pipeline: deployment frequency, lead time, failure rate and recovery time of each major org, read from the deployment jobs and the Pull Requests of the git provider.

Edit the package files

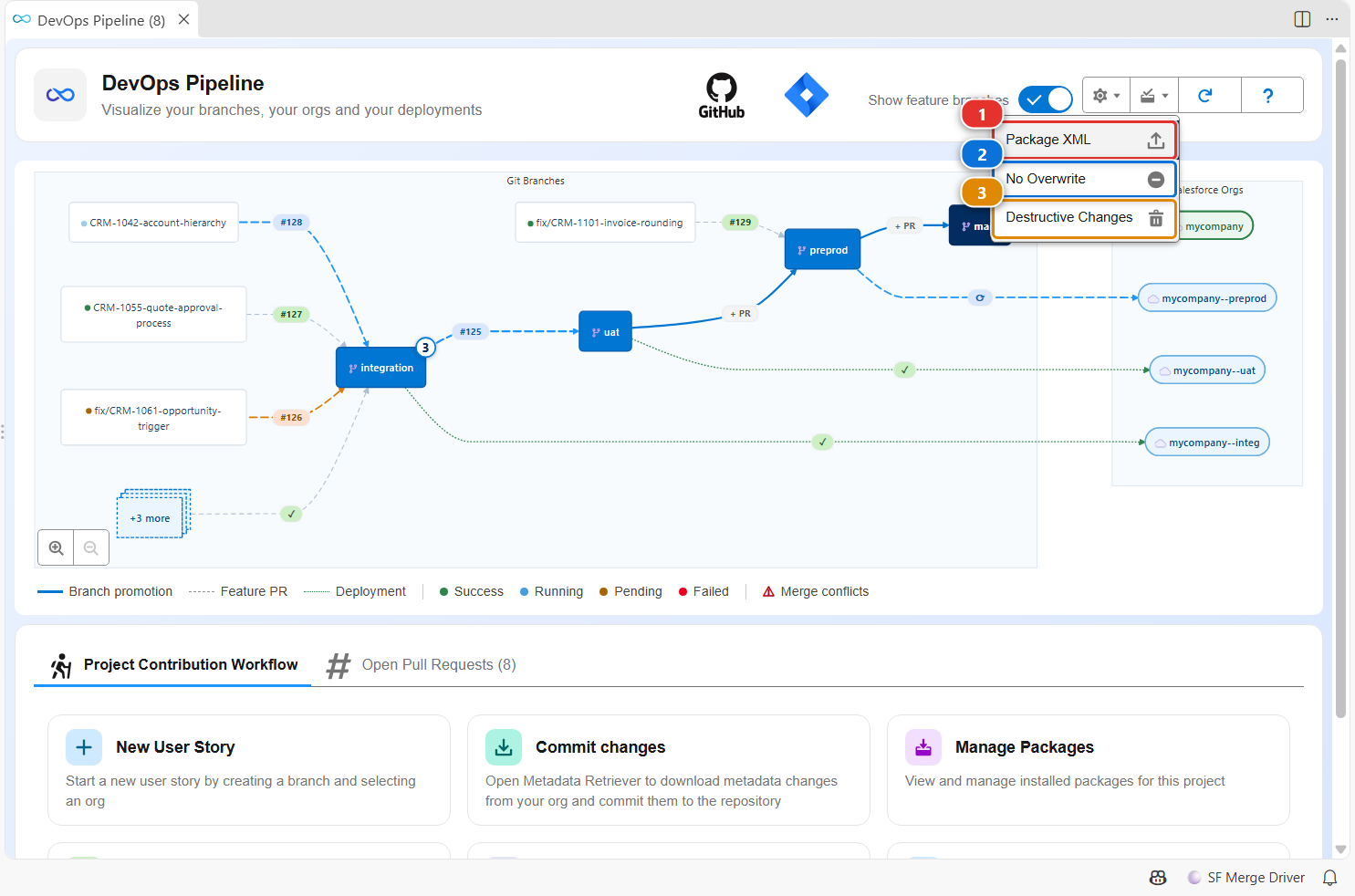

The second menu opens the package files of the project in a visual editor:

• (1) manifest/package.xml, what the pipeline deploys.
• (2) manifest/package-no-overwrite.xml, metadata that is created once and never overwritten afterwards.
• (3) manifest/destructiveChanges.xml, metadata to delete in the target orgs.

See Configure overwrite management for when to use each one.
